Description

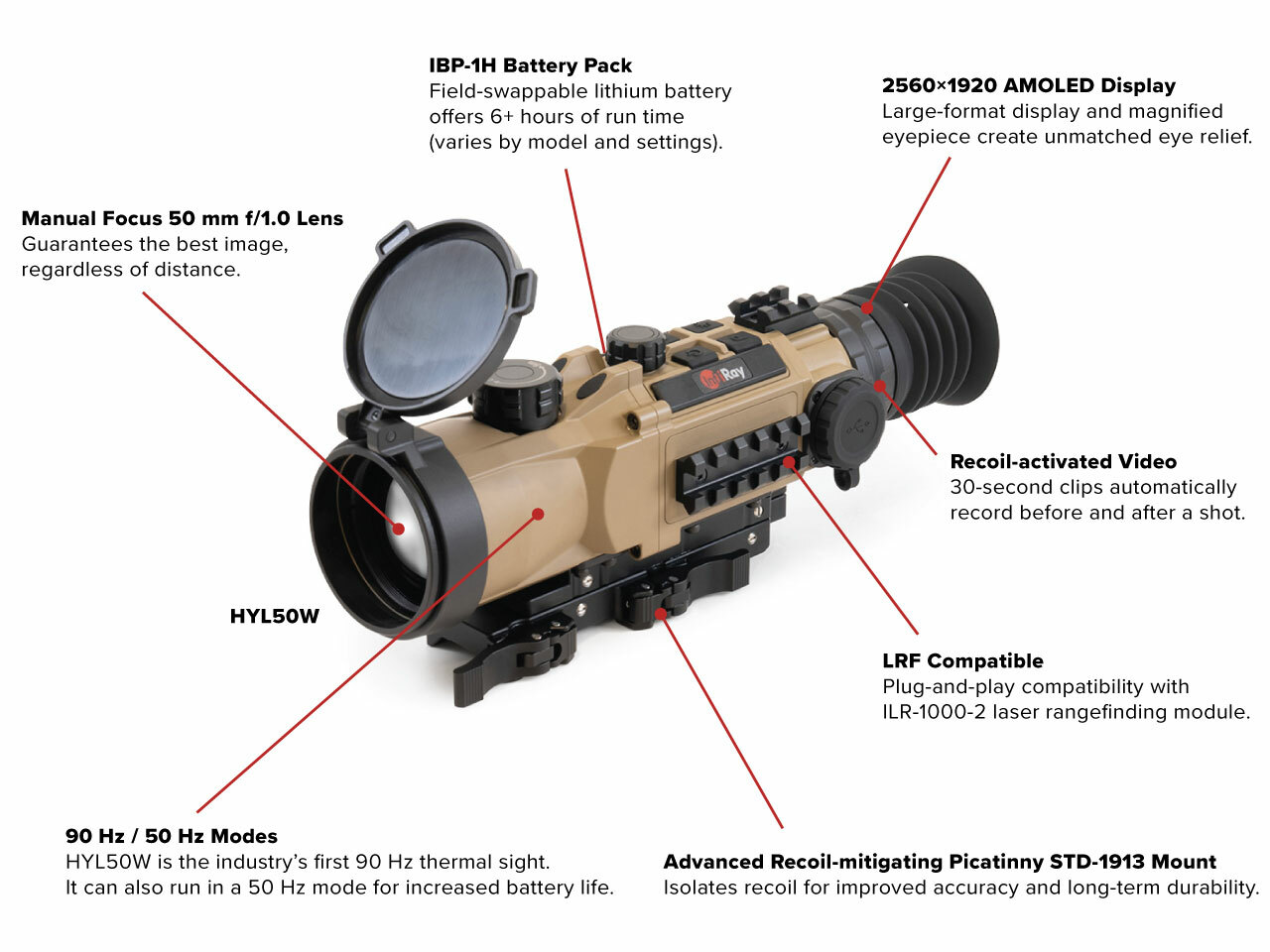

First introduced as the powerful combination of a thermal weapon sight and a thermal clip-on unit, the HYBRID line-up continues to evolve with specialized models, top-performing sensors, and an advanced feature set designed for technical shooters. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing, a sharp image, and massive eye relief. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom ballistic reticle generator, wireless remote, and an onboard ballistic solver. This year, the HYBRID family expands with the addition of the 50 mm 90 Hz model (HYL50W), optimized for smooth motion and fast moving targets.
Access Manual HERE


A faster refresh rate means smoother motion and a more life-like viewing experiece. This is especially important when shooting at fast moving targets. The industry has progressed from 9 Hz, to 25, 50, now 60 Hz; we’re proud to introduce the first 90 Hz thermal weapon sight to the market.
Display Type   AMOLED
Eye Relief   60mm
Objective Focal Length   50mm
Digital Magnification    8X
Diopter Range   -4 to +2
Vertical Angular Field of View   5.6°
Horizontal Angular Field of View   7.5°
Focusing Mechanism   Manual Focus
Objective F#Â Â Â 1.0
Objective Diameter   50mm
Objective Lens Material   Germanium
Display Resolution   2560×1920
Detection Range   2000 Yards
Optical Magnification   3X
Warranty   5 Years
Startup Time   <10 Seconds, Instant from Standby
Rangefinder   ILR-1000-2 LRF (Optional/Not Included)
Color Palettes   White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Picture-in-Picture   Yes
Storage Capacity   64GB
Connector Output   Power/Data
User-Updatable Firmware   Yes
Mobile App   Yes
Run Time   6+
Power Source   USB-C External, IBP-1H Li-ion Battery Pack
Stand-by Mode   Yes
Reticle   9 (7 Static, 1 DIY, 1 BDC)
Connector Type   USB-C
External Power Source   USB-C
Country of Manufacture   China
Wifi   Yes
Onboard Recording   Yes
Image Capture   Yes
Operating Temperature Range   -4°F~122°F
Recoil Rating   1000 g/s² (300 Win./7mm Mag)
Ingress Protection   IP67
Mounting Interface   Picatinny MIL-STD 1913 Rail
Housing Material   Magnesium Alloy
Weight   30.01 Oz.
Height   2.99
Width   3.03
Length   11.02
Sensor Type   InfiRay MICRO II
Sensor Pixel Size   17μm
Thermal Sensitivity   <25mk
Non-Uniformity Correction (NUC)Â Â Â Manual, Automatic, Semi-Automatic
Sensor Frame Rate   50hz / 90hz
Device Technology   Thermal Imaging
Sensor Resolution   384×288
